Assembly Resources
US MgO Company is proud to provide expert technical assistance to designers, installers, and end customers of Innovation MgO.
Provided below are assembly details that support the installation of Innovation MgO products.
Have questions or can’t find what you’re looking for? Contact us.

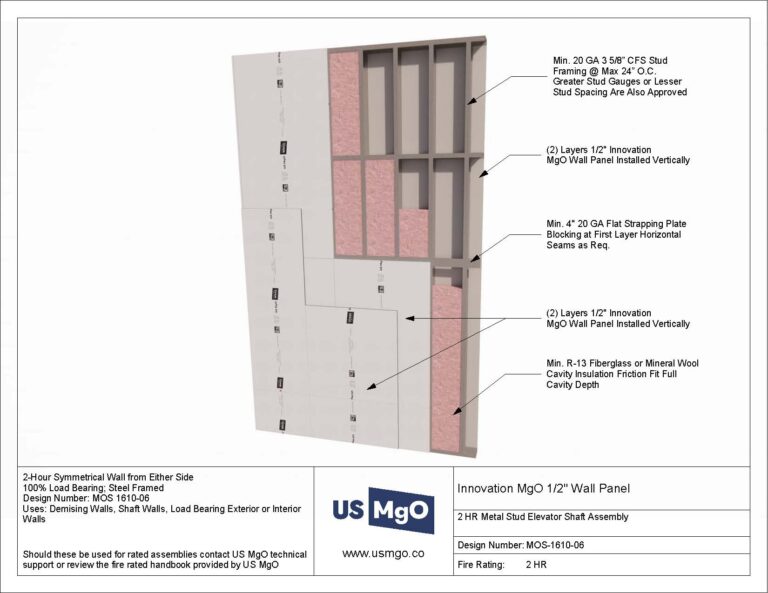

Innovation MgO 1/2" Wall Panels
Innovation MgO 1/2" Wall Panels
2 HR Metal Stud Elevator Shaft Assembly
2-Hour Symmetrical Wall from Either Side
100% Load Bearing; Steel Framed
Design Number: MOS 1610-06
Uses: Demising Walls, Shaft Walls, Load Bearing Exterior or Interior Walls

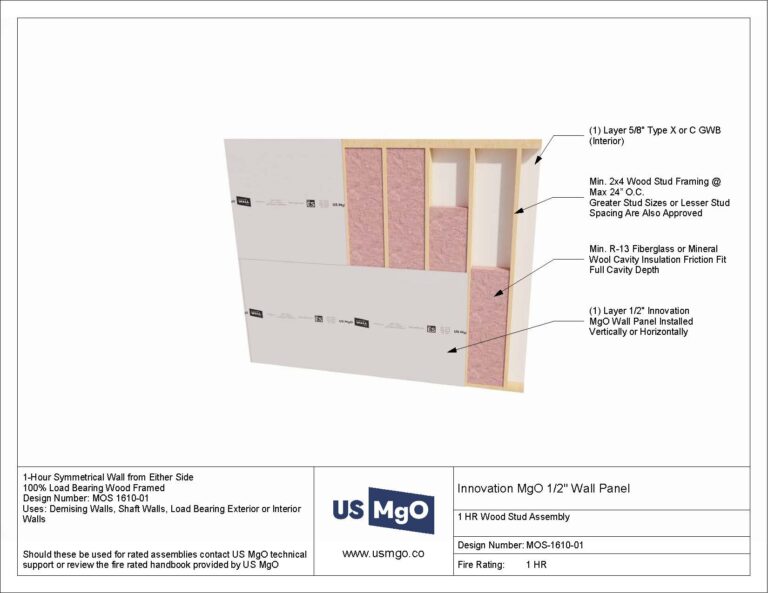

Innovation MgO 1/2" Wall Panels
1 HR Wood Stud Assembly
1-Hour Symmetrical Wall from Either Side
100% Load Bearing Wood Framed
Design Number: MOS 1610-01
Uses: Demising Walls, Shaft Walls, Load Bearing Exterior or Interior Walls

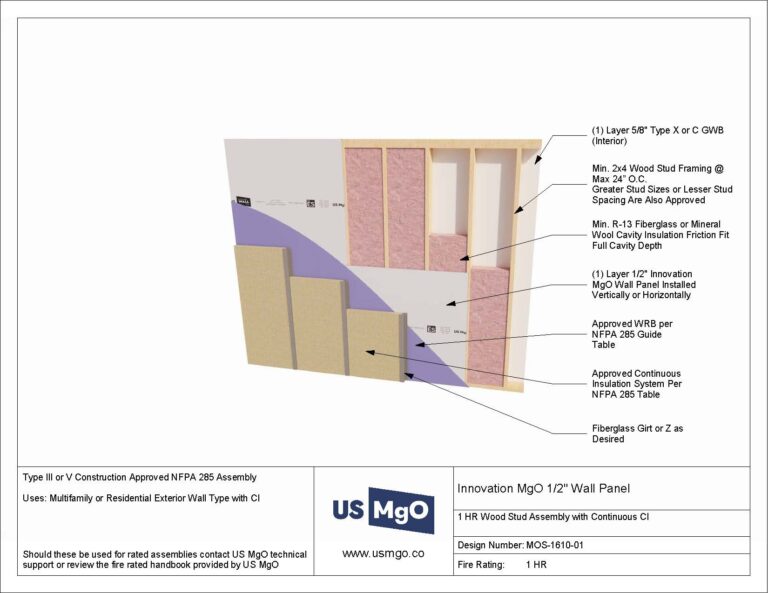

Innovation MgO 1/2" Wall Panel
1 HR Wood Stud Assembly with Continuous CI
Type III or V Construction Approved NFPA 285 Assembly
Uses: Multifamily or Residential Exterior Wall Type with CI

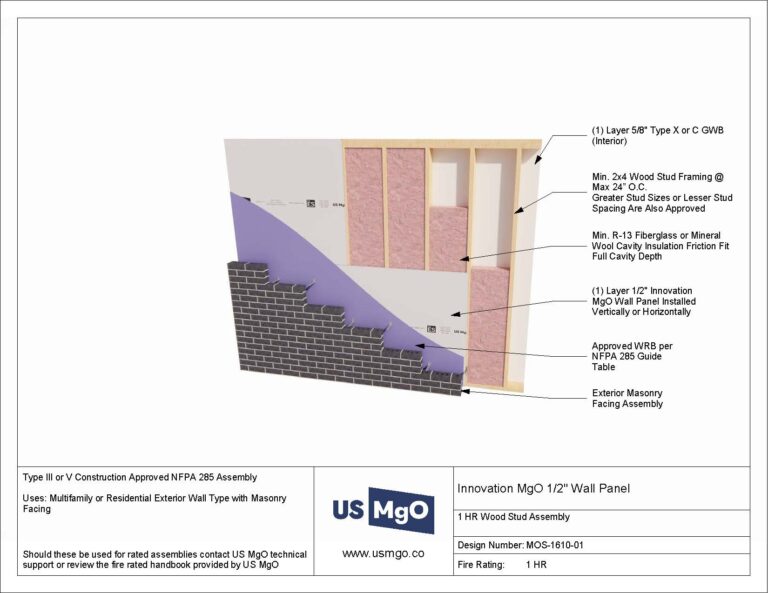

Innovation MgO 1/2" Wall Panel
1 HR Wood Stud Assembly
Type III or V Construction Approved NFPA 285 Assembly
Uses: Multifamily or Residential Exterior Wall Type with Masonry Facing

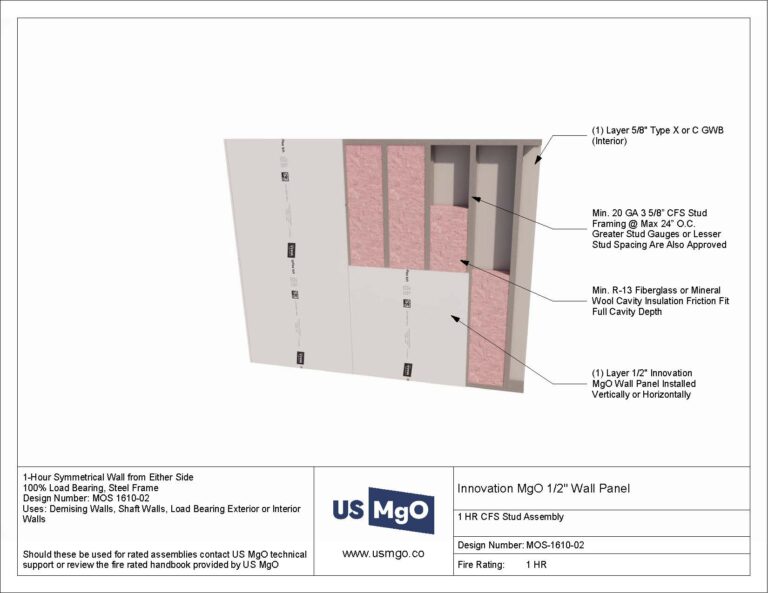

Innovation MgO 1/2" Wall Panel
1 HR CFS Stud Assembly
1-Hour Symmetrical Wall from Either Side
100% Load Bearing, Steel Frame
Design Number: MOS 1610-02
Uses: Demising Walls, Shaft Walls, Load Bearing Exterior or Interior Walls

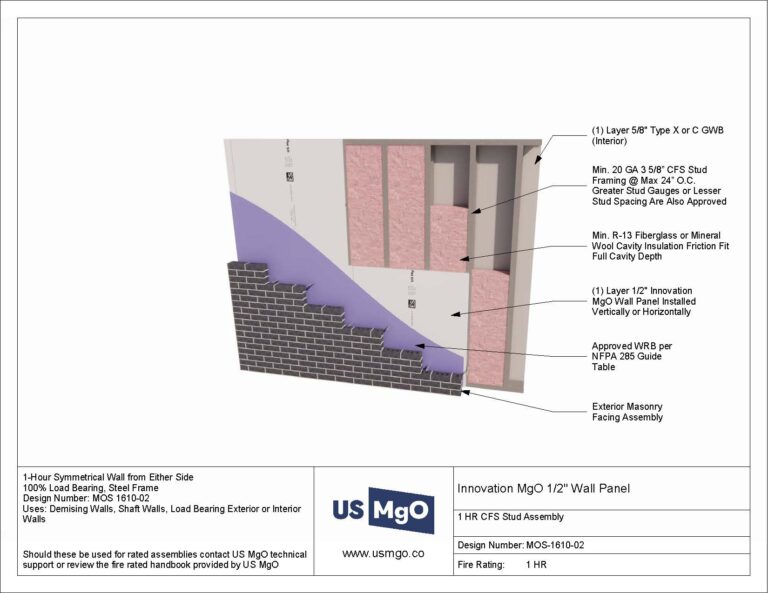

Innovation MgO 1/2" Wall Panel
1 HR CFS Stud Assembly
1-Hour Symmetrical Wall from Either Side
100% Load Bearing, Steel Frame
Design Number: MOS 1610-02
Uses: Demising Walls, Shaft Walls, Load Bearing Exterior or Interior Walls
Innovation MgO 1/2" Wall Panel
2 HR/1HR Asymmetrical Wood Stud Assembly
2-Hour / 1-Hour Asymmetrical Wall Assembly
100% Load Bearing, Wood Frame
Design Number: MOS 1610-03
Uses: Demising Walls, Shaft Walls, Load Bearing Exterior or Interior
Walls With Distance Rating Reduction Per Chapter 7 of IBC

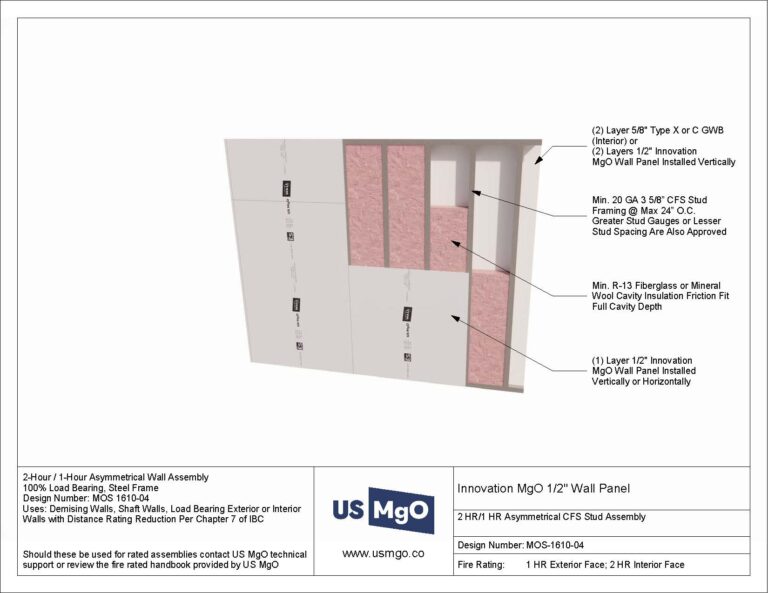

Innovation MgO 1/2" Wall Panel
2 HR/1 HR Asymmetrical CFS Stud Assembly
2-Hour / 1-Hour Asymmetrical Wall Assembly
100% Load Bearing, Steel Frame
Design Number: MOS 1610-04
Uses: Demising Walls, Shaft Walls, Load Bearing Exterior or Interior
Walls with Distance Rating Reduction Per Chapter 7 of IBC

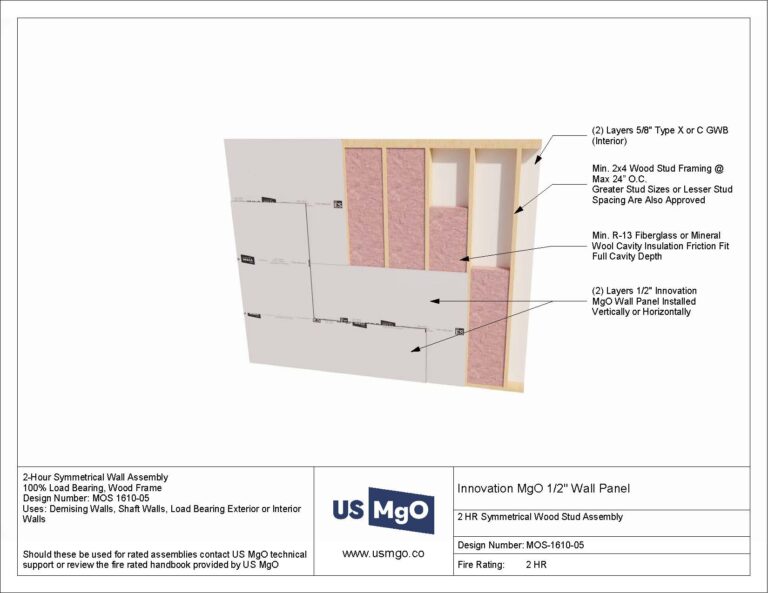

Innovation MgO 1/2" Wall Panel
2 HR Symmetrical Wood Stud Assembly
2-Hour Symmetrical Wall Assembly
100% Load Bearing, Wood Frame
Design Number: MOS 1610-05
Uses: Demising Walls, Shaft Walls, Load Bearing Exterior or Interior Walls

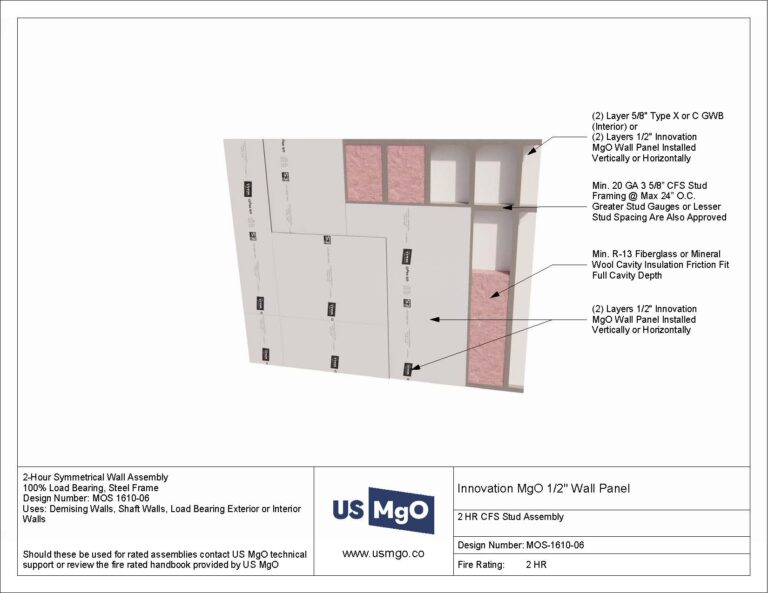

Innovation MgO 1/2" Wall Panel
2 HR CFS Stud Assembly
2-Hour Symmetrical Wall Assembly
100% Load Bearing, Steel Frame
Design Number: MOS 1610-06
Uses: Demising Walls, Shaft Walls, Load Bearing Exterior or Interior Walls

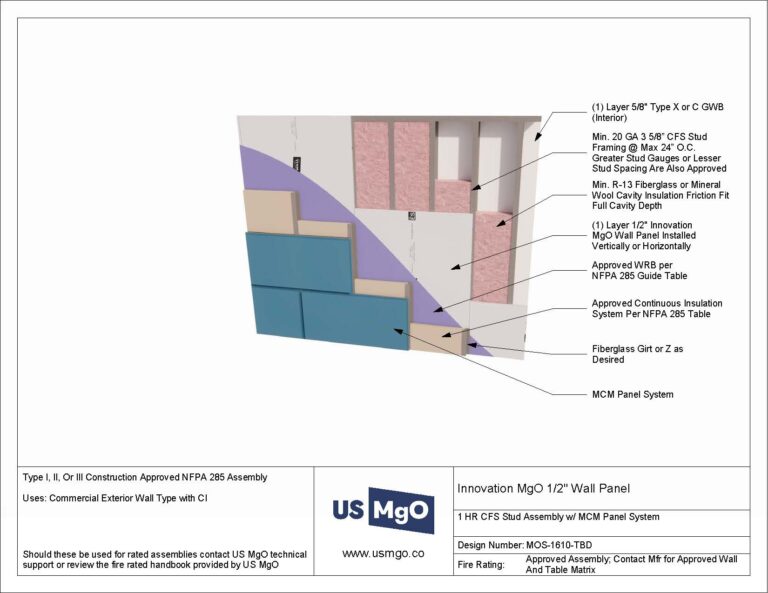

Innovation MgO 1/2" Wall Panel
1 HR CFS Stud Assembly w/ MCM Panel System
Type I, II, Or III Construction Approved NFPA 285 Assembly
Uses: Commercial Exterior Wall Type with CI

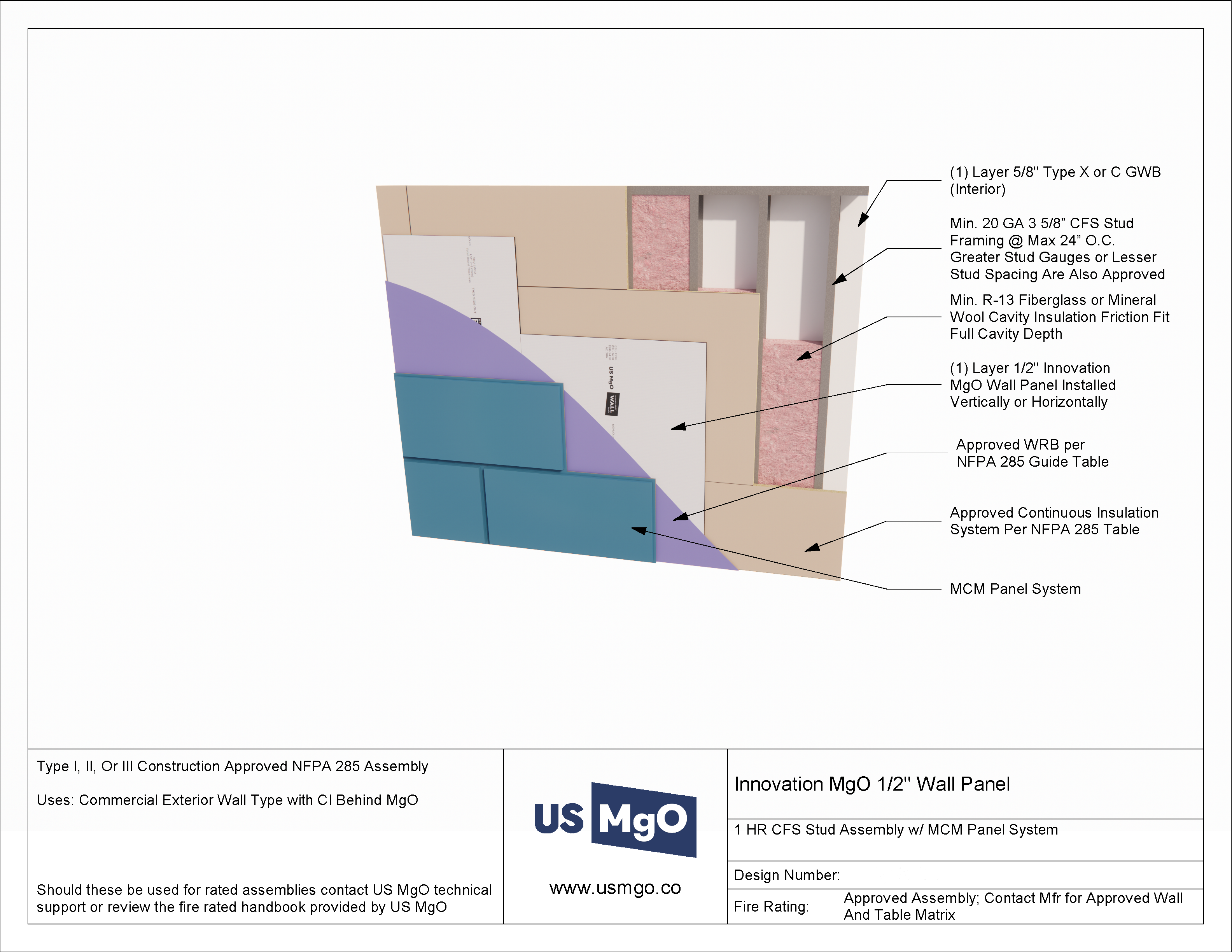

Innovation MgO 1/2" Wall Panel
1 HR CFS Stud Assembly w/ MCM Panel System
Type I, II, Or III Construction Approved NFPA 285 Assembly
Uses: Commercial Exterior Wall Type with CI Behind MgO

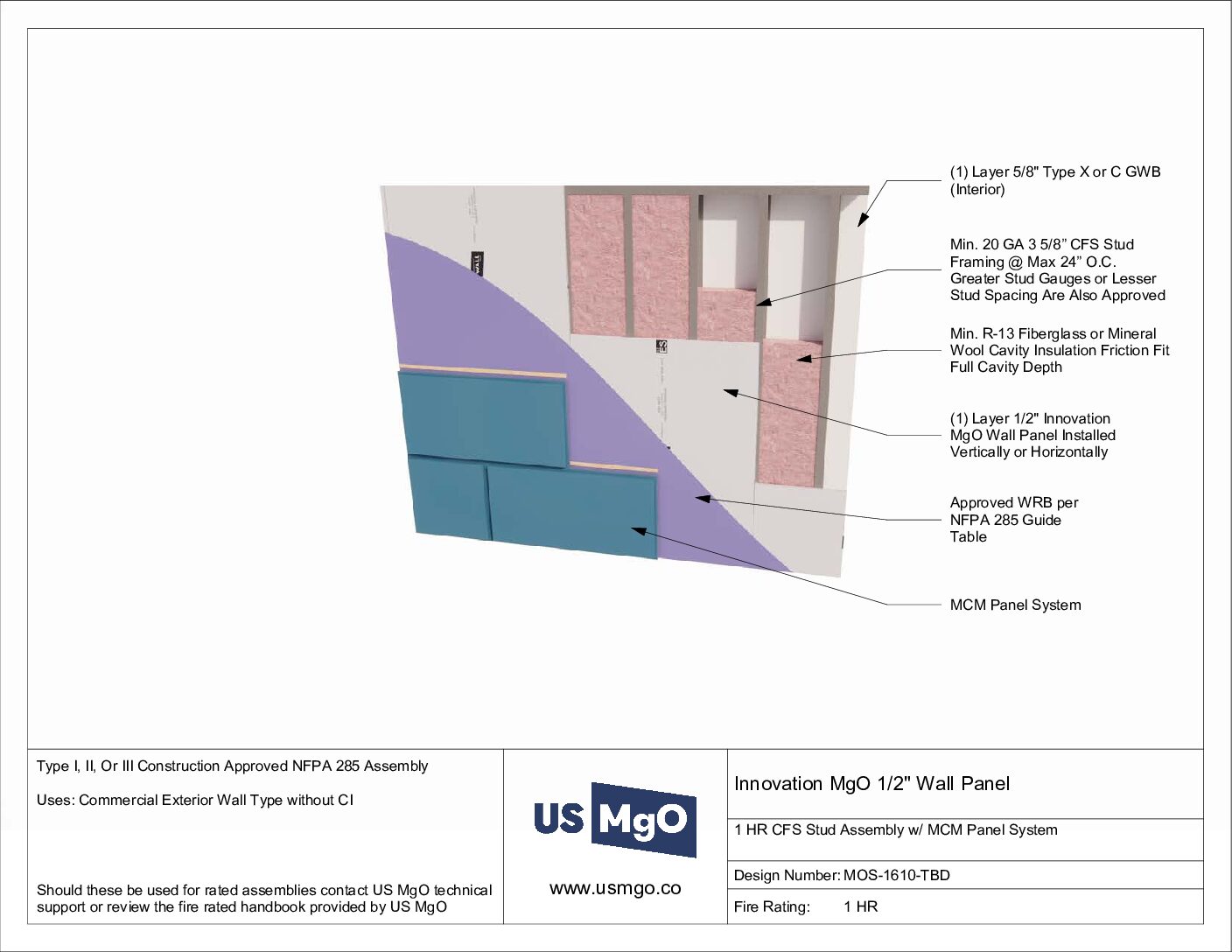

Innovation MgO 1/2" Wall Panel
1 HR CFS Stud Assembly w/ MCM Panel System
Type I, II, Or III Construction Approved NFPA 285 Assembly
Uses: Commercial Exterior Wall Type without CI
Innovation MgO 1/2" Wall Panel
CFS Stud Assembly w/ CI
Type I, II, or III Construction Approved NFPA 285 Assembly – Brick
Uses: Commercial Exterior Wall Type with CI Behind MgO
Innovation MgO 1/2" Wall Panel
1 HR CFS Stud Assembly w/ EIFS
Type I, II, or III Construction Approved NFPA 285 Assembly – EIFS
Uses: Commercial Exterior Wall Type with CI Behind MgO
Innovation MgO 1/2" Wall Panel
CFS Stud Assembly w/ CI and Fiber Cement Siding
Type I, II, or III Construction Approved NFPA 285 Assembly – Fiber Cement
Uses: Commercial Exterior Wall Type with CI Behind MgO

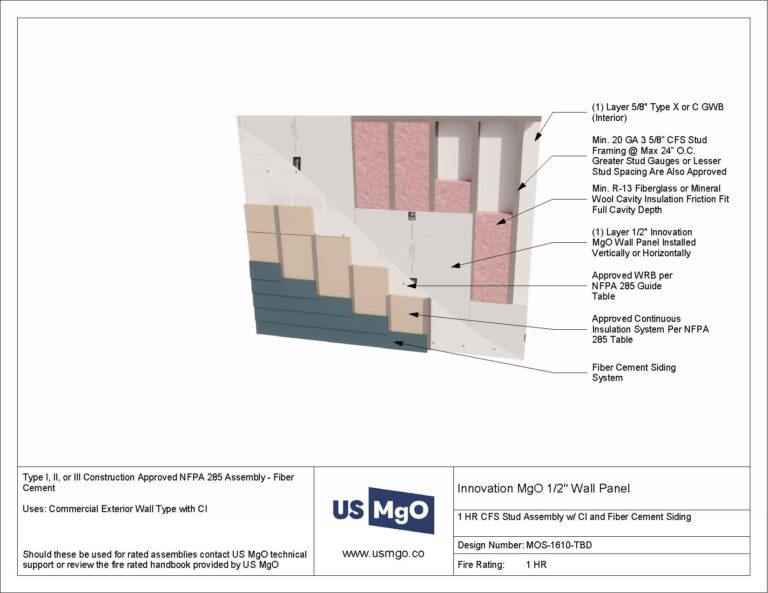

Innovation MgO 1/2" Wall Panel
1 HR CFS Stud Assembly w/ CI and Fiber Cement Siding
Type I, II, or III Construction Approved NFPA 285 Assembly – Fiber Cement
Uses: Commercial Exterior Wall Type with CI

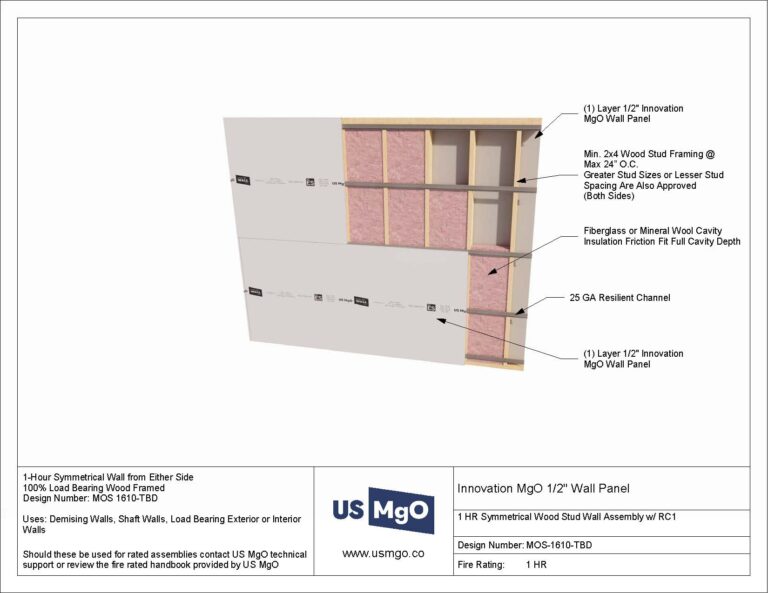

Innovation MgO 1/2" Wall Panel
1 HR Symmetrical Wood Stud Wall Assembly w/ RC1
1-Hour Symmetrical Wall from Either Side
100% Load Bearing Wood Framed
Design Number: MOS 1610-TBD
Uses: Demising Walls, Shaft Walls, Load Bearing Exterior or Interior Walls

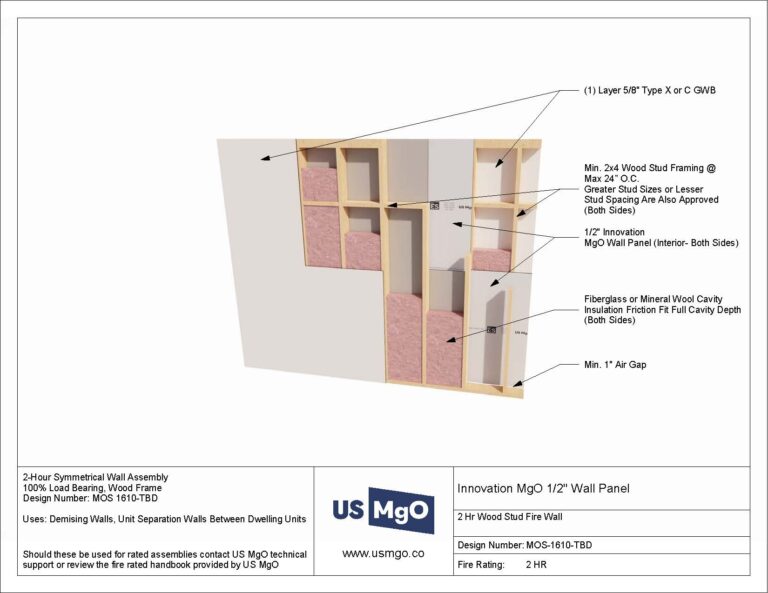

Innovation MgO 1/2" Wall Panel
2 Hr Wood Stud Fire Wall
2-Hour Symmetrical Wall Assembly
100% Load Bearing, Wood Frame
Design Number: MOS 1610-TBD
Uses: Demising Walls, Unit Separation Walls Between Dwelling Units
Innovation MgO 1/2" Wall Panel
1 HR CFS Wall Assembly w/ RC1
1-HOUR SYMMETRICAL WALL ASSEMBLY
100% LOAD BEARING, STEEL FRAME
USES: DEMISING WALLS, SHAFT WALLS, LOAD BEARING INTERIOR WALLS
Innovation MgO 1/2" Wall Panel
1 HR Symmetrical Wood Stud Wall Assembly w/ RC1
1-Hour Symmetrical Wall from Either Side
100% Load Bearing Wood Framed
Design Number: MOS 1610-TBD
Uses: Demising Walls, Shaft Walls, Load Bearing Exterior or Interior Walls
Innovation MgO 3/4" Subfloor Panels

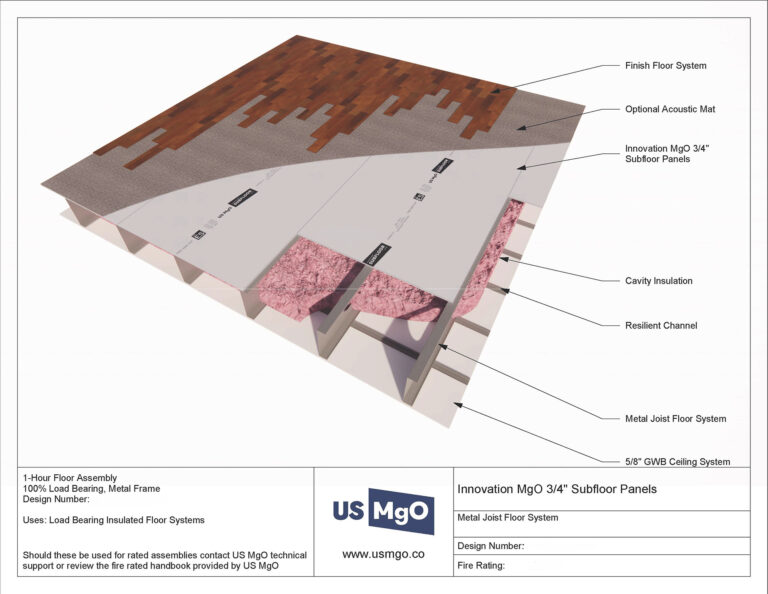

Innovation MgO 3/4" Subfloor Panels
Metal Joist Floor System
1-Hour Floor Assembly
100% Load Bearing, Metal Frame
Design Number: MOS 1610-TBD
Uses: Load Bearing Insulated Floor Systems

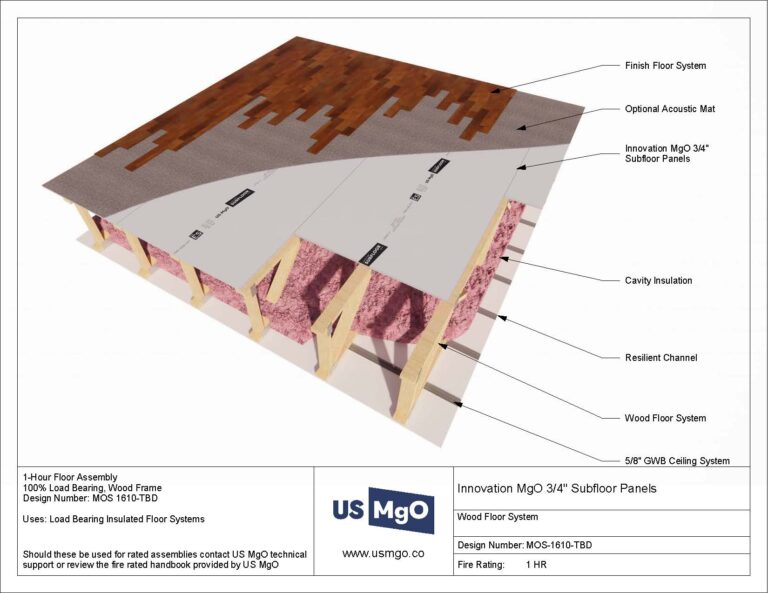

Innovation MgO 3/4" Subfloor Panels
Wood Floor System
1-Hour Floor Assembly
100% Load Bearing, Wood Frame
Design Number: MOS 1610-TBD
Uses: Load Bearing Insulated Floor Systems
Innovation MgO 3/4" Subfloor Panels
Wood Floor System
1-Hour Floor Assembly
100% Load Bearing, Wood Frame
Design Number: MOS 1610-TBD
Uses: Load Bearing Insulated Floor Systems

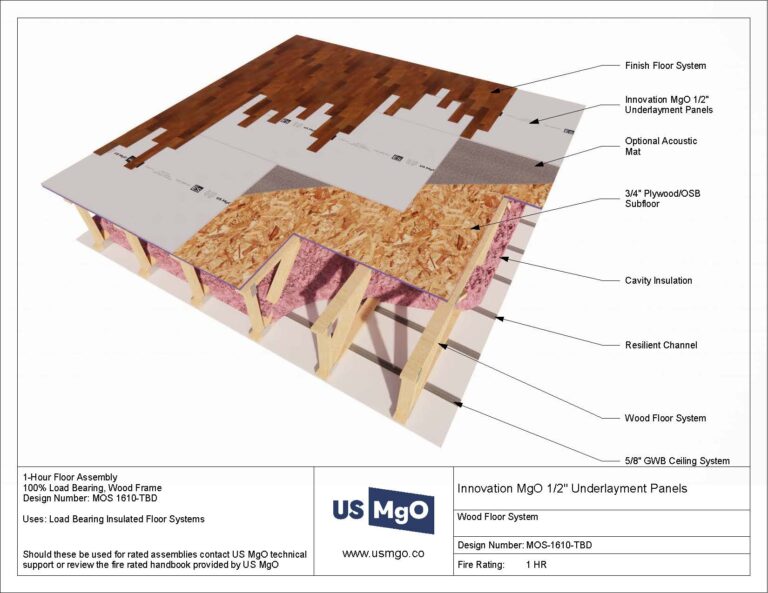

Innovation MgO 1/2" Floor Panels
Innovation MgO 1/2" Underlayment Panels
Wood Floor System
1-Hour Floor Assembly
100% Load Bearing, Wood Frame
Design Number: MOS 1610-TBD
Uses: Load Bearing Insulated Floor Systems
Innovation MgO 1/2" Underlayment Panels
Wood Floor System
1-Hour Floor Assembly
100% Load Bearing, Wood Frame
Design Number: MOS 1610-TBD
Uses: Load Bearing Insulated Floor Systems
